FL18
FAMBITION

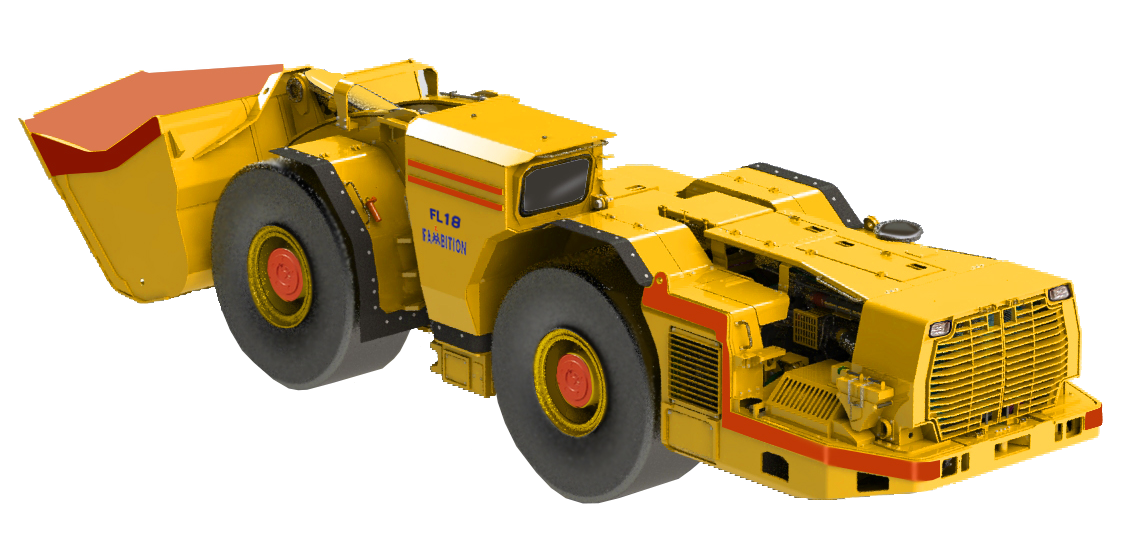

FL18is a dieseI LHD with a load capacity of 18 tons specilly designed for large underground metal mines,suitable for dift size above 5m*5m.
Allkey components are international wellknown brands, the vehicle adopts hydraulic pilot control and EHC variable hydraulic system. The control system based on CAN-bus technology, Fambition Electronic Technician, with on board display to show real time operating parameters with self diagnostic and troubleshooting. Standard visual remote control system, auto lubrication system and Ansul auto fire suppression system are optional for the loader.
▍Specification
Performance | Engine |
| St bucket capacity: 7.5m³ | Model: Volvo TAD1352VE |
| Rated payload: 18000kg | Power: 315kW@1900rpm |
| Operating weight: 46500kg | Torque: 2175Nm@1200rpm |
| Breakout force: 295kN | Type: EFI,water cooled,Turbo charged |
| Traction force: 327kN | Emission: Tier3Stage Ⅲ |
| Dimension | Hydraulic system |
Length: 11329 mm | Hydraulic pump: Rexroth |
| Width: 3000mm | Load sensing variable plunger double pum |
| Height: 2768mm | Hydraulic valve: Rexroth, Parker, Mico |
| Ground clearance: 470mm | Hydraulic oil tank volume |
| Dump height: 2848mm | Work &Steer tank: 230L |
| Steering angle: ±42.5° | Brake tank: 75L |
| Inner turning radius: 3517mm | Fuel tank: 420L |
| Outer turning radius: 7379mm | Cooler: engine, transmission oil, hydraulic oil |
| Drivetrain | Cabin |
Torque converter: DANA CL960 | FOPS/ROPS Certified |
Transmission: DANA6400 | Enclosed cabin with air conditioner |
Axle: Kessler D106 | Door interlock |
Brake: Posi-Stop wheel brake Tire | Double joystick control |
| model: 29.5R29 | LED front and rear lights |
| Control system | Others |
| FET electronic technician | Manual central lubrication, fire extinguisher |
| CAN-bus technology | Boom lock pin, articulation pin, reverse alarm |
5.7"color dispaly | |
| 3 modular design | Option |
Bucket: 6.3~8.6m³ | |
Alarm warnin | Lincoln auto lubrication system |
Self-diagnosis | Ansul auto fire suppression system |
Data log download | Radio remote control device |
▍Device view
▍Steering view
