FL10E
FL10E is an electric LHD designed for medium and large scale underground metal mines,payload 10 metric tons
FL10E equipped with horizontal reel system that enables the LHD pass the junction box withoutaU-Tum.It makes driving simple and flexible.The power cabinet onthe LHD can protect the personneland equipment from allelectric danger.The towing system allows the LHD to move easily and safely.
The FL10ELHD is equipped with an electro-hydraulic controled variable hydraulic system,and a constant tension induction automatic control cable reel system.The on-board display screen can display the operating parameters of the LHD in realtime and has a self diagnosis function. Equipped with standard visible radio remote control system,Optional automatic automatic centralized lubrication system and Protecfire automatic centralized fire suppression system.

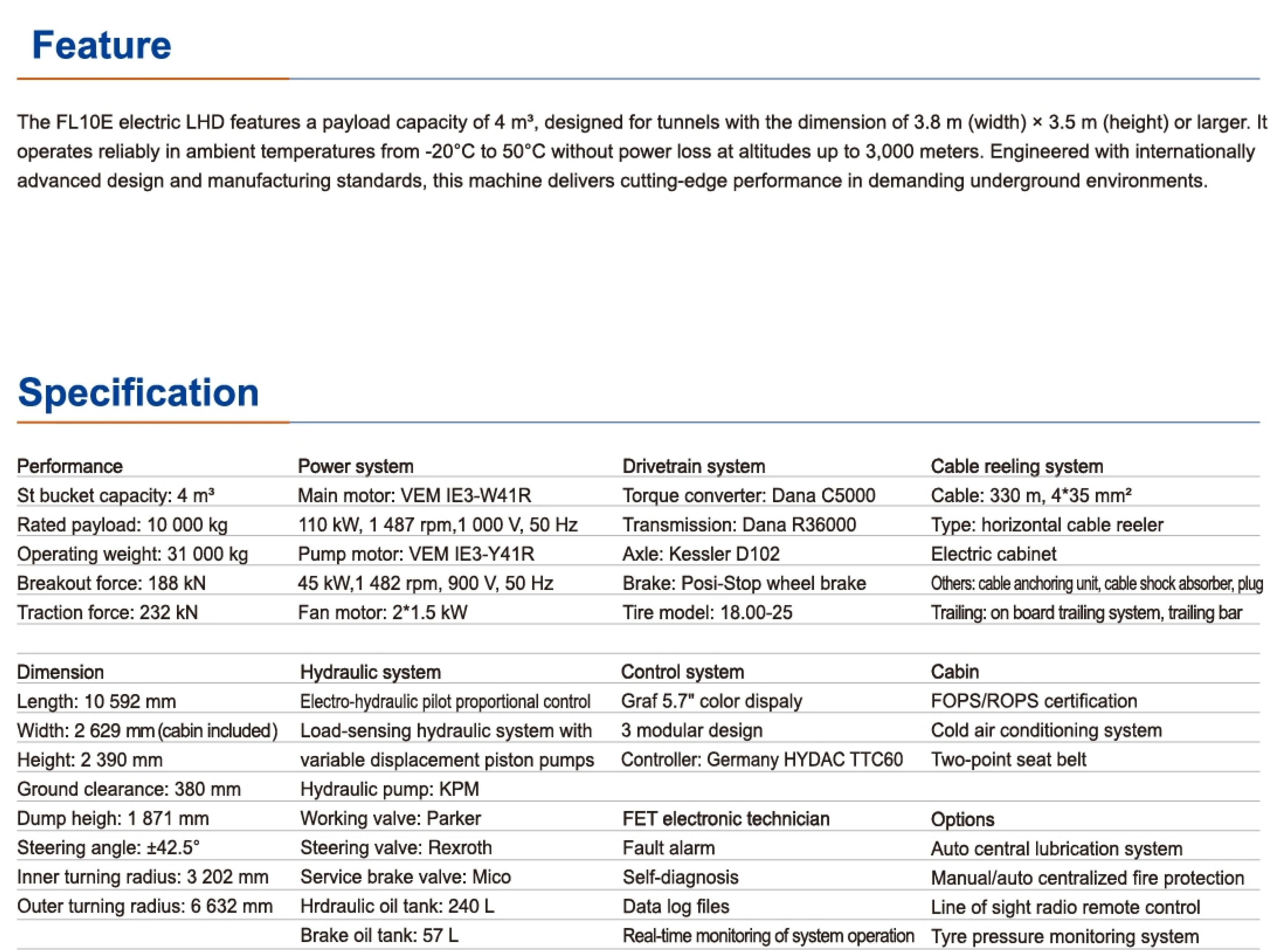

▍Specification
Performance | Power system |
| St bucket capacity: 4m³ | Main motor:VEM IE3-W41R |
| Rated payload: 10000 kg | 110kW, 1487rpm, 1000V, 50Hz |
| Operating weight: 31000 kg | Pump motor:VEM IE3-Y41R |
| Breakout force: 188kN | 45 kW, 1482 rpm, 900V, 50Hz |
| Traction force: 232kN | Fan motor: 2x1.5kW |
| Dimension | Hydraulic system |
| Length: 10434mm | Hydraulic pump: KPM |
| Width: 2634mm（cabin included） | Load sensing variable plunger |
| Height: 2390mm | double pump |
| Ground clearance: 380mm | Working valve: Parker |
| Dump height: 1914mm | Steering valve: Parker |
| Steering angle: ±42.5° | Hydraulic oil tank volume |
| Inner turning radius: 3199mm | Work&steer tank: 300L |
| Outer turning radius: 6513mm | Brake tank: 75L |
| Drivetrain system | Cable reling system |
| Torque converter: DANA C5000 | Cable: 330m, 4x35mm² |
| Transmission: DANA R36000 | Type: horizontal cable reeler |
Axles: Kessler D102 | Electric cabinet(IT) |
Brake: Posi-Stop wheel brak | Others: cable anchor,cable cushion,plug |
| Tire model: 18.00-25 | Trailing: on board trailing system, trailingbar |
| Control system | Cabin |
| FET electronic technician | FOPS/ROPS Certified |
| CAN-bus technology | Enclosed cabin with air conditione |
5.7"color dispaly | Manual central lubrication |
| 3 modular design | |
| Radio remote control device | Option |
| Trouble alarm | Bucket: 4.0~5.4m³ |
Self-diagnosis | Lincoln auto lubrication system |
Data log download | Ansul auto fire suppression system |

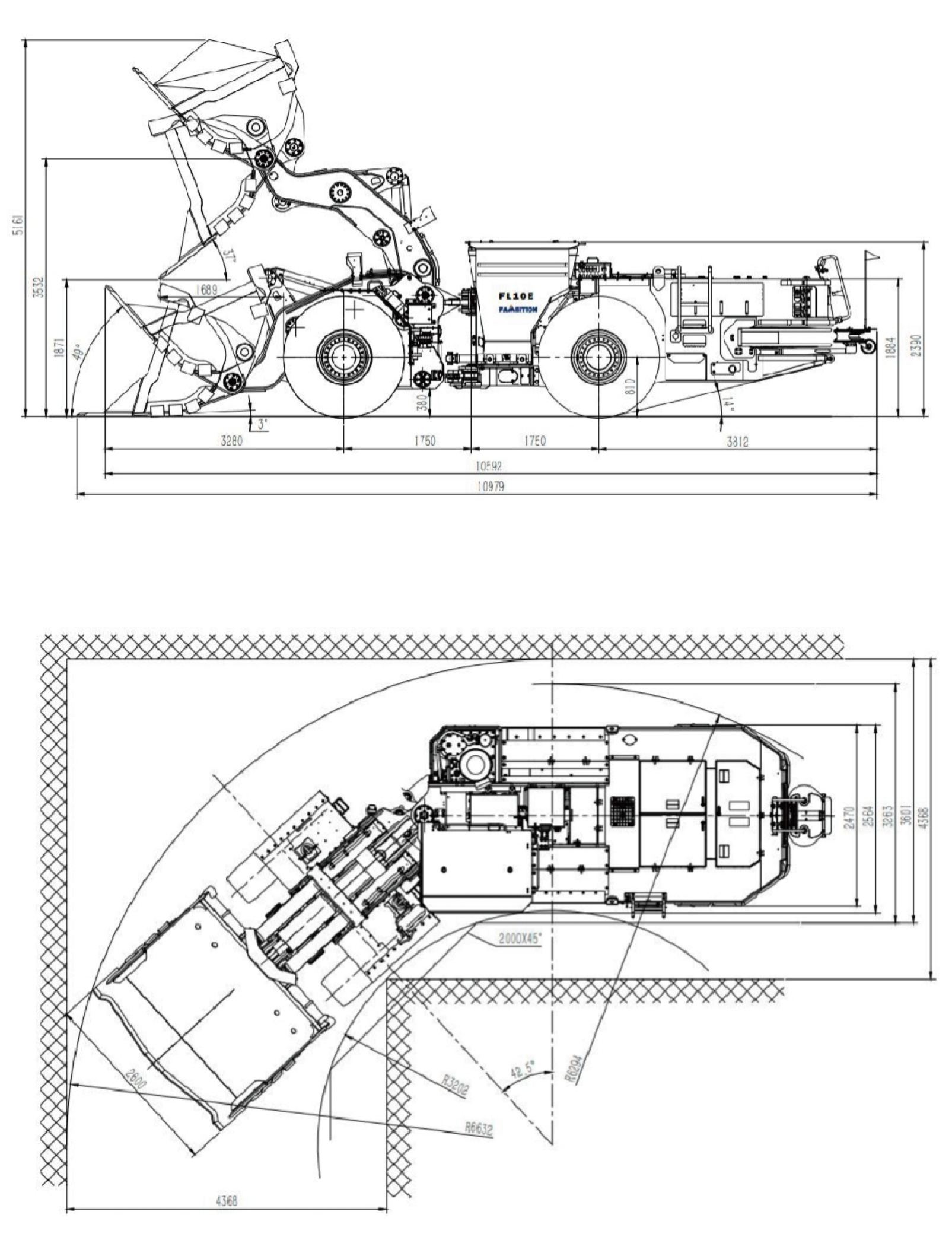

▍Device view
