FL04 is a 4 ton diesel LHD speciall designed for small underground metal mines. It has a compact structure and smaller turning radius, especally suitable for narrow roadways.
The FL04 is equipped with a 89KW CUMMINS Engine QSB4.5 with 89 Kw rated power, which has strong power, strong Breakout force and low failure rate due to high power reserve. Steering operation control adopts hydrauic handle, convenient and comfortable operation. The braking system adopts Posi-Stop spring brake and hydraulic release brake, and the safety is better.
The FL04 highland type LHD is equipped with Deutz BF6L914 engine with power of 112kW. The power of the engine is 71.5kW at an altitude of 4500 meters, which meets the requirements of high altitude operation.

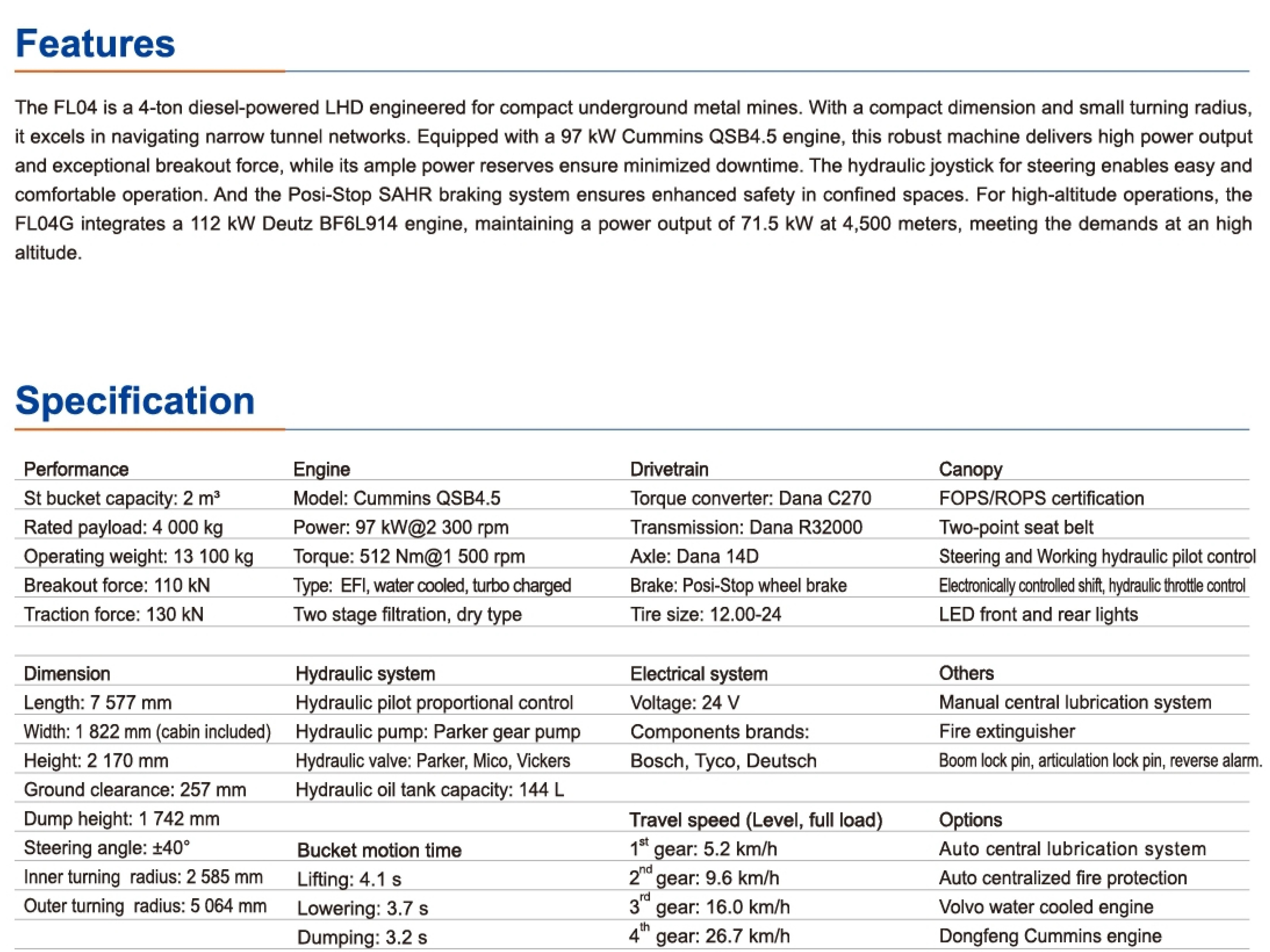

▍Specification
| Performance | Engine |
| Capacity: 2m³ | Model: CUMMINS QSB4.5 |
| Rated payload: 4000 kg | Power: 97 kW@2300 pm |
| Operating weight: 13100kg | Torque: 572 Nm@1500 rpm |
| Breakout force: 110 kN | Type: Electric injection,water cooled Engine |
| Traction force: 130 kN | Two stage filtration, catalytic purifier |
| Dimension | Hydraulic system |
| Length: 7180mm | Hydraulic pump: Parker gear pump |
| Width: 1811mm（cabin included） | Hydraulic valve: Rexroth, Parker, Mico |
| Height: 2170mm | Hydraulic oil tank capacity: 144L |
| Ground clearance: 257mm | Fuel tank capacity: 148L |
| Dump height: 1746mm | |
| Steering angle: ±40° | Bucket motion time |
| Inner turning radius: 2659mm | Lifting: 4.1s |
| Outer turning radius: 4957mm | Dumping: 3.2s |
| Drivetrain | Cabin |
| Torque converter: DANA C270 | FOPS/ROPS Certified Safety roof |
| Transmission: DANA R32000 | Joystick control |
| Axle: DANA 14D | Steering and Working hydraulic pilot control |
| Brake: Posi-Stop wheel brake | Eectonicaly controled shift, hydraulic throttle control |
| Tire model: 12.00-24 | LED Front and rear lights |
| Electric system | Others |
| Voltage: 24V | Manual central lubrication system |
| Component: Bosch, Tyco, Deutsch | Fire extinguisher |
| | Boom Lock Pin, Articulation Lock |
| Travel speed (full load) | Pin, Reverse Alarm |
| 1st gear: 5.2km/h | Option |
| 2nd gear: 9.6km/h | Lincoln auto lubrication system |
| 3rd gear: 16km/h | Ansul auto fire suppression system |
| 4th gear: 26.7km/h | DEUTZ air cooled Engine |

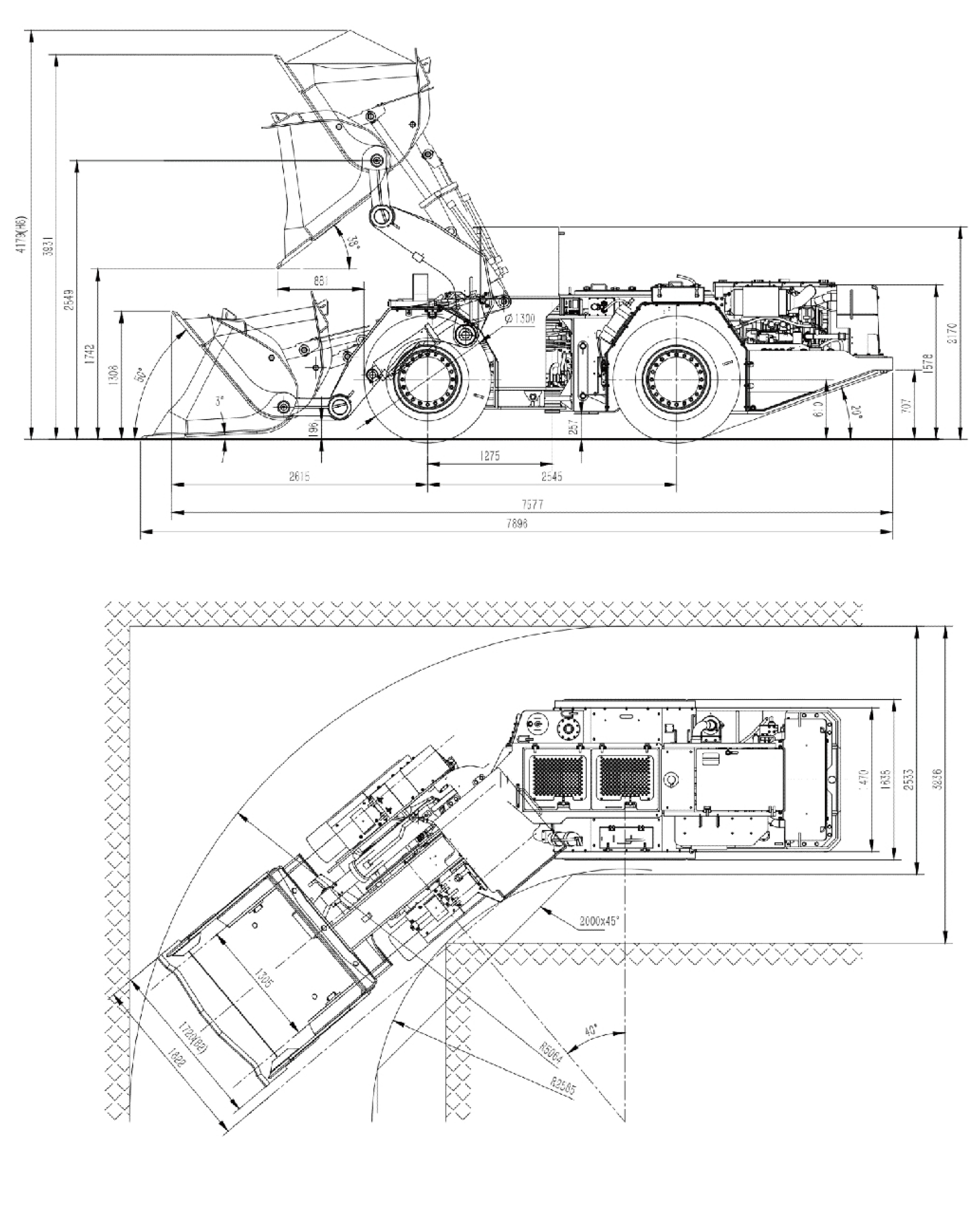

▍Device view
▍Steering view
