FL14 is a diesel engine LHD designed for large scale underground metal mines production, payload 14 mt.
All key components are intermational wellknown brands, the vehicle adopts hydraulic piot control and EHC variable hydraulic system. The control system based on CAN-bus technology, Fambition Electronic Technician, with on board display to show real time operating parameters with sef diagnostic and troubleshooting. Standard visual remote contol system, auto lubrication system and Ansul auto fre suppression system are optional for the loader.
▍Specification
Performance | Engine |
| St bucket capacity: 6m³ | Model: Volvo TAD1350VE |
| Rated payload: 14000kg | Power: 256kW@1900rpm |
| Operating weight: 39000kg | Torque: 1780Nm@1260rpm |
| Breakout force: 265kN | Type: EFI, water cooled, Turbo charged |
| Traction force: 300kN | Emission: Tier3Stage Ⅲ |
| Dimension | Hydraulic system |
Length: 10641mm | Hydraulic pump: Rexroth |
| Width: 2793mm | Load sensing variable plunger double pum |
| Height: 2552mm | Hydraulic valve: Rexroth, Parker, Mico |
| Ground clearance: 386mm | Hydraulic oil tank volume |
| Dump height: 2406mm | Work &Steer tank: 230L |
| Steering angle: ±42.5° | Brake tank: 75L |
| Inner turning radius: 3283mm | Fuel tank: 420L |
| Outer turning radius: 6945mm | Cooler: engine, transmission oil, hydraulic oil |
| Drivetrain | Cabin |
Torque converter: DANA C9000 | FOPS/ROPS Certified |
Transmission: DANA6000 | Enclosed cabin with air conditioner |
Axle: Kessler D106 | Door interlock |
Brake: Posi-Stop wheel brake | Double joystick control |
| Tire model: 26.5-25 | LED front and rear lights |
| Control system | Others |
| FET electronic technician | Manual central lubrication, fire extinguisher |
| CAN-bus technology | Boom lock pin, articulation pin, reverse alarm |
5.7"color dispaly | |
| 3 modular design | Option |
Bucket: 4.6~7.0m³ | |
Alarm warnin | Lincoln auto lubrication system |
Self-diagnosis | Ansul auto fire suppression system |
Data log download | Radio remote control device |

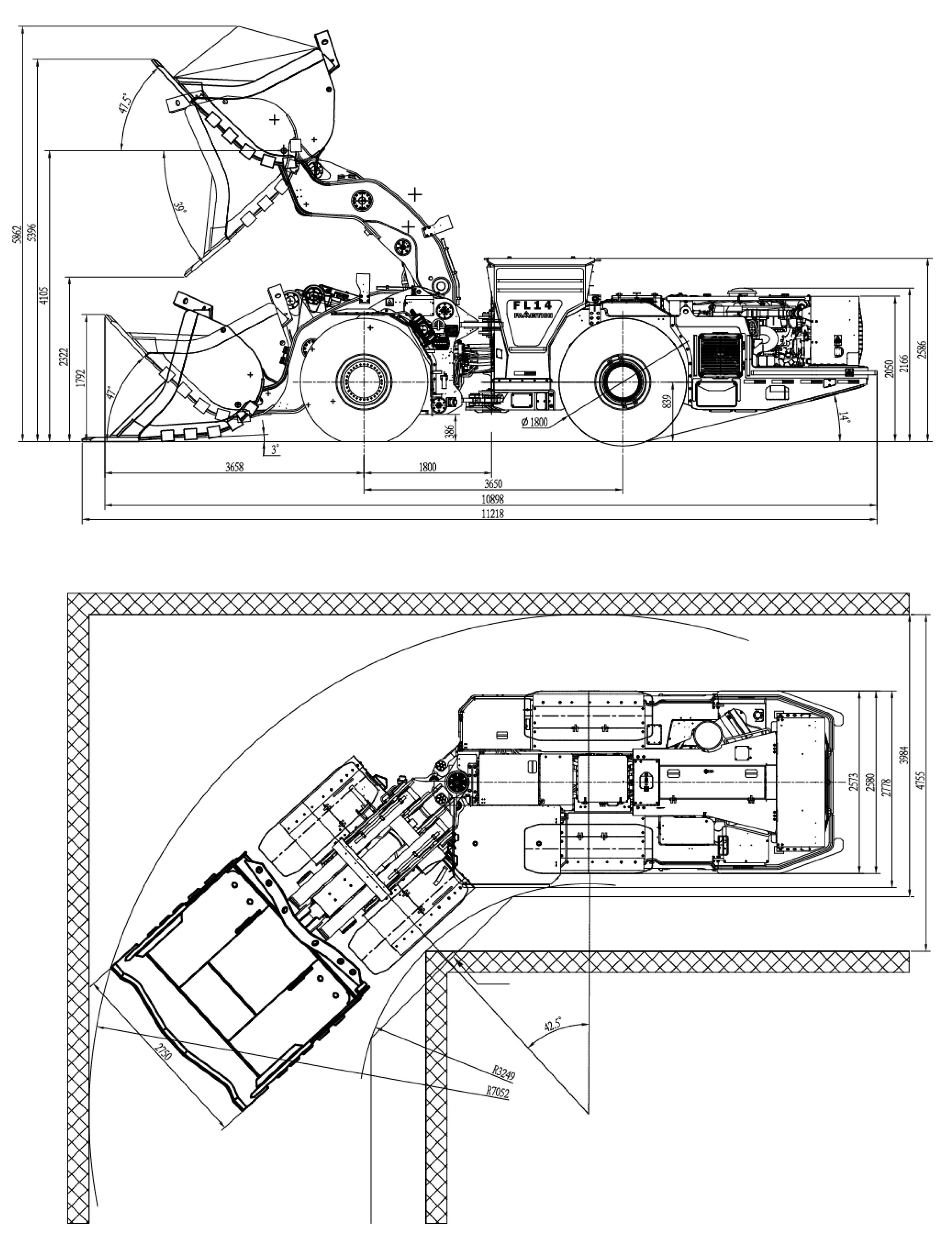

▍Device view
▍Steering view
