FL14E is an electric LHD designed for large scale underground metal mines production, payload 14 mt.
FL14E has a horizontal cable reeling system that enables the loader to pass power supply box without tuning and can travel lexibly. The electic cabinet could protect personnel and equipment from all lectricity danger. Trailing system gives an easier transfer between different stopes.
FL14E has an EHC variable hydraulic system and constant tension sensing cable-ree control system. The on board display could show real time operating parameters and state, including self diagnostics. Standard stadia remote control system, auto ubrication system and Ansul auto fre suppression system are optional for the loader. FL14E is an optimized load-haul solution to large scale mining.

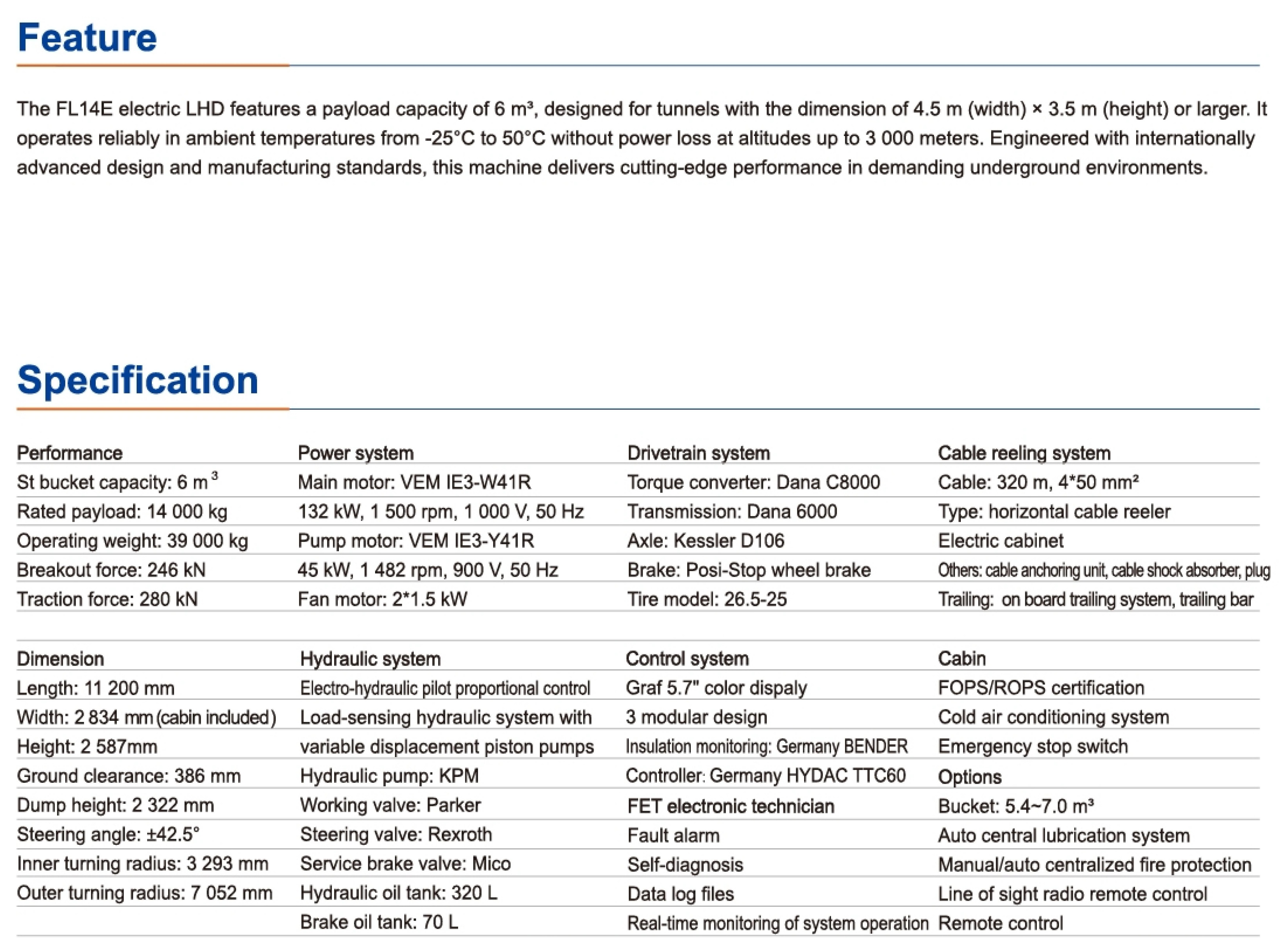

▍Specification
Performance | Power system |
| St bucket capacity: 6m³ | Main motor: VEM IE3-W41R 315 |
| Rated payload: 14C000 kg | 132kW,1500 rpm,1000V,50Hz |
| Operating weight: 39,000 kg | Pump motor: VEM IE3-Y41R 225 |
| Breakout force: 246kN | 45 kW, 1482 rpm, 900V, 50Hz |
| Traction force: 280kN | Fan motor:2x1.5kW |
| Dimension | Hydraulic system |
| Length: 11098mm | Hydraulic pump: KPM |
| Width: 2783mm（cabin included） | Load sensing variable plunger |
| Height: 2552mm | double pump |
| Ground clearance: 382mm | Working valve: Parker |
| Dump height: 2406mm | Steering valve: Parker |
| Steering angle: ±42.5° | Hydraulic oil tank volume |
| Inner turning radius: 3293mm | Work&steer tank: 320L |
| Outer turning radius: 6945mm | Brake tank: 70L |
| Drivetrain system | Cable reling system |
| Torque converter: DANA C8000 | Cable: 330m, 4x50 mm² |
| Transmission: DANA 6000 | Type:horizontal cable reeler |
Axles: Kessler D106 | Electric cabinet(IT) |
Brake:Posi-Stop wheel brak | Others:cable anchor,cable cushion,plug |
| Tire model: 26.5-25 | Trailing:on board trailingsystem,trailingbar |
| Control system | Cabin |
| FET electronic technician | FOPS/ROPS Certified |
| CAN-bus technology | Enclosed cabin with air conditione |
5.7"color dispaly | Manual central lubrication |
| 3 modular design | |
| Radio remote control device | Option |
| Trouble alarm | Bucket:4.6~7.0m³ |
Self-diagnosis | Lincoln auto lubrication system |
Data log download | Ansul auto fire suppression system |

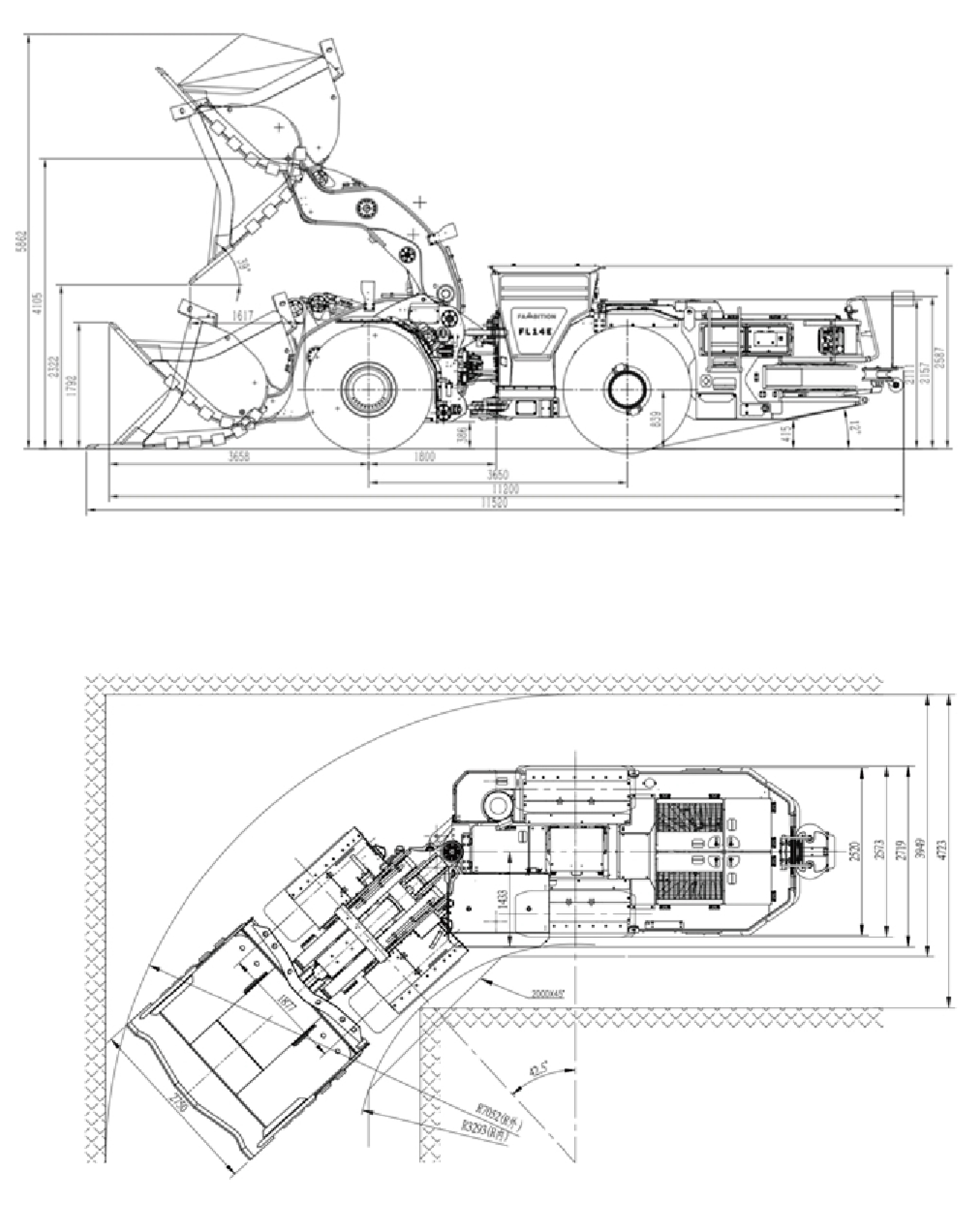

▍Device view
▍Steering view
