FL07 is a 7-ton diesel LHD designed for medium underground metal mines.
The main parts of FL07 use intermational famous brand, the whole vehicle control system adopts CAN-bus communication technology, Fambion Electronic Technician, electro-hydraulic proportional pilot control and variable hydraulic system. The control system is designed on the basis of CAN-bus. The on-board display screen can display the operating parameters of the scraper in realtime, and hasthe functions of fault waming and self diagnosis. Optional automatic centalubrication system and Ansul automaticfire extinguishing system. The design and manufacture of FL07 have reached the advanced level of the industry, the production capacity is high, the failure rate is low, the use cost is low.

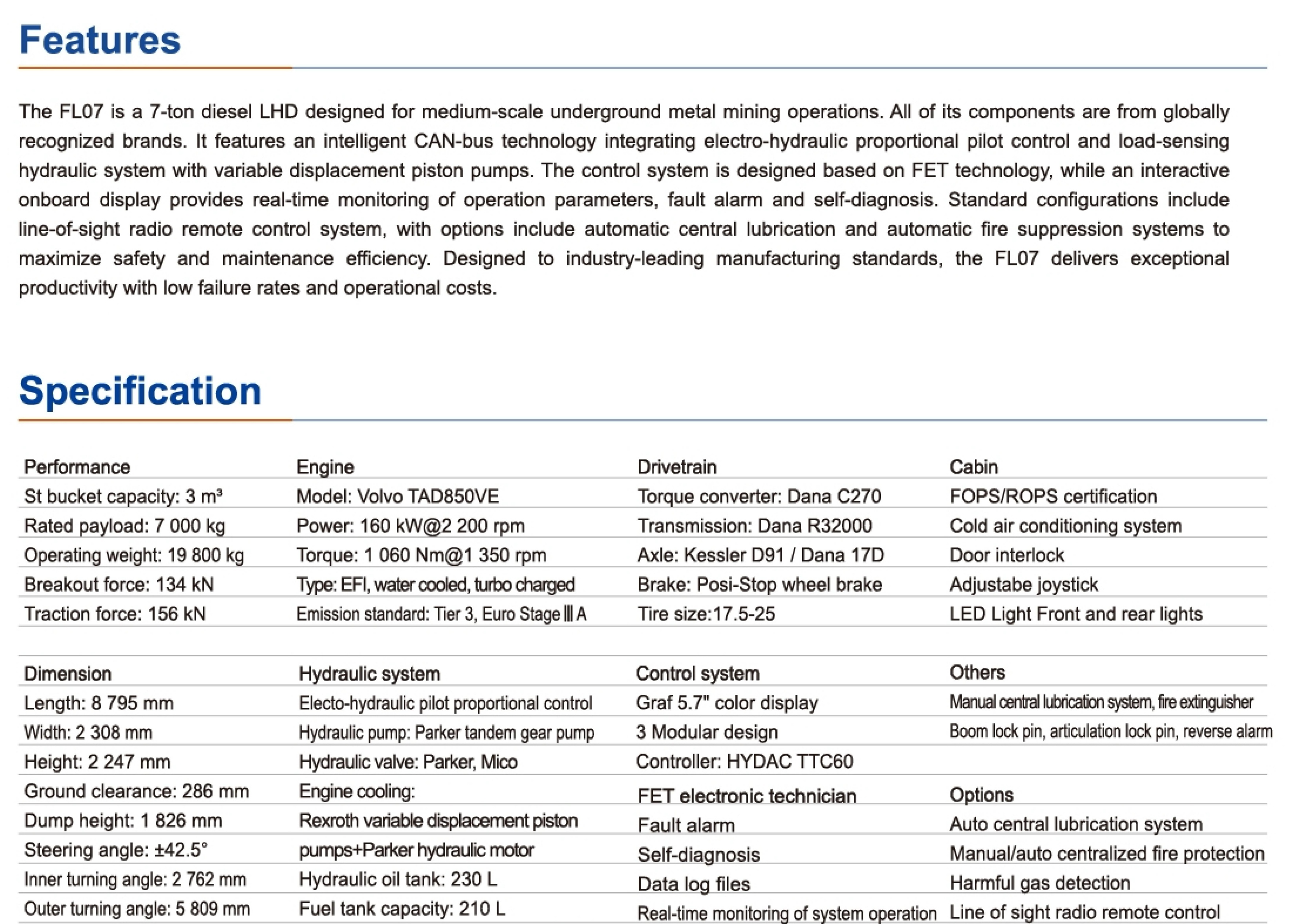

▍Specification
| Performance | Engine |
| St bucket capacity: 3m³ | Model: Volvo TAD850VE |
| Rated payload: 7000kg | Power: 160kW@2200rpm |
| Operating weight: 19800kg | Torque: 1060Nm@1500rpm |
| Breakout force: 134kN | Type: EFI, water cooled, Turbo charged |
| Traction force: 156kN | Emission: Tier3Stage Ⅲ |
| Dimension | Hydraulic system |
| Length: 8795mm | Hydraulic pump: Rexroth |
| Width: 2288mm | Load sensing variable plunger double pum |
| Height: 2247mm | Hydraulic valve: Rexroth, Parker, Mico |
| Ground clearance: 286mm | Fuel tank capacity |
| Dump height: 1826mm | Hydraulic oil tank: 230L |
| Steering angle: ±42.5° | Fuel tank capacity: 210L |
| Inner turning radius: 2762mm | Cooler: Engine, transmission oil, Hydraulic oil |
| Outer turning radius: 5809mm | |
| Drivetrain | Cabin |
| Torque converter: DANA C270 | FOPS/ROPS Certified |
| Transmission: DANA R32000 | Enclosed cabin with air conditioner |
| Axle: Kessler D91/DANA 16D | Door interlock protectiion |
| Brake: Posi-Stop wheel brake | Double joystick control |
| Tire model: 17.5-25 | LED Light Front and rear lights |
| Control system | Others |
| FET electronic technician | Manual central lubrication system, fire extinguisher |
| CAN-bus technology | Boom bolt /hinge bolt /reverse alarm |
| 5.7"color dispaly | |
| 3 modular design | Option |
| SKF auto lubrication system | |
| Trouble alarm | Ansul auto fire suppression system |
| Self-diagnosis | Radio remote control device |
| Data log download |

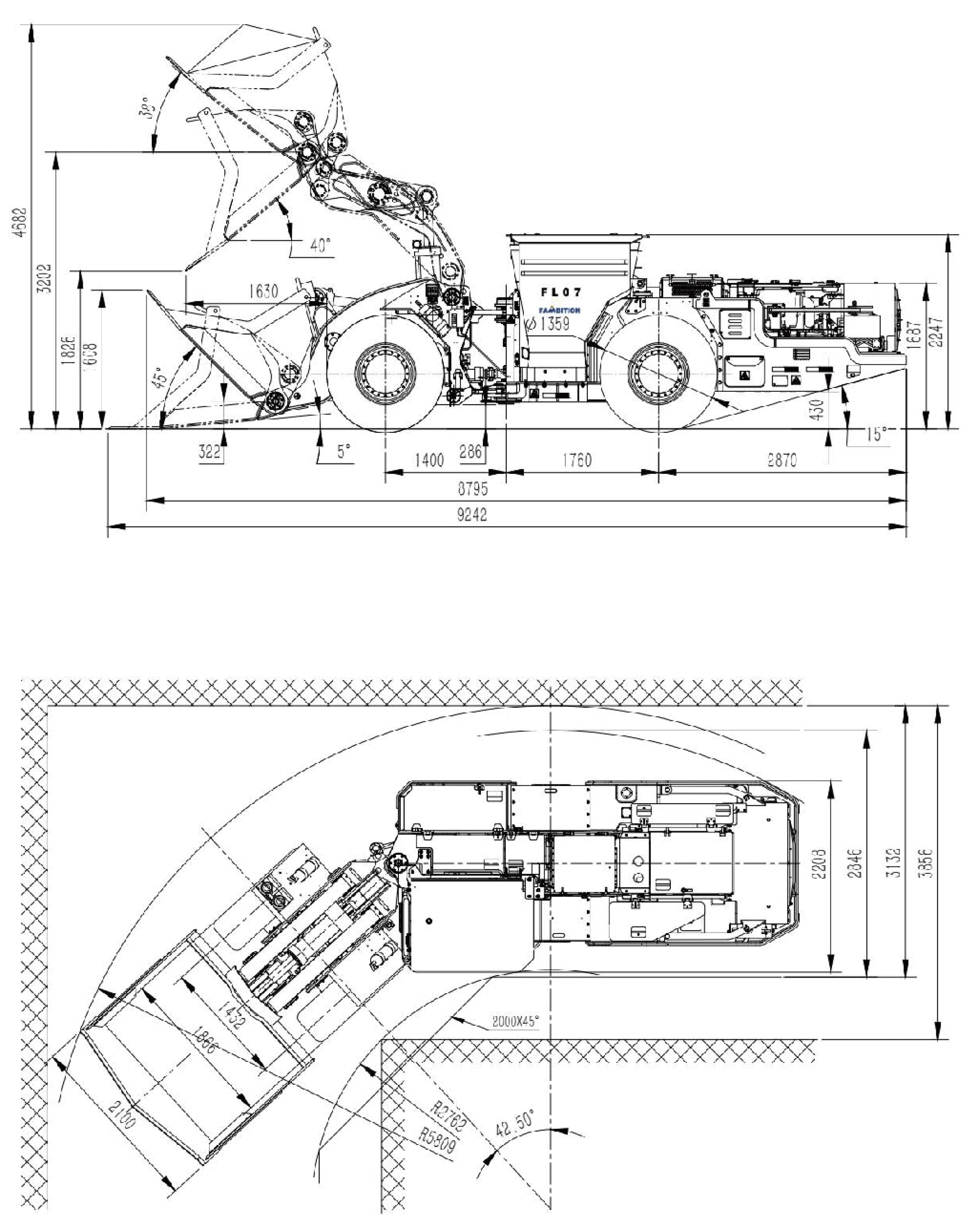

▍Device view
▍Steering view
