FL10 is a diesel engine LHD designed for large scale underground metal mines production, payload 10 mt.
All key components are international well-known brands, the vehicle adopts hydraulic pilot control and EHC variable hydraulic system. The control system based on CAN-bus technology, Fambition Electronic Technician, with on board display to show real time operating parameters with self-diagnostic and troubleshooting. Standard visual remote control system, auto lubrication system and Ansul auto fire suppression system are optional for the loader.
The design and manufactuing of FL10 is in the fist class of the industry, higher production capabity, lower downtime and lower operating cost.
▍Specification
Performance | Engine |
| St bucket capacity: 4m³ | Model: Volvo TAD853VE |
| Rated payload: 10000 kg | Power: 235 kW@2200 rpm |
| Operating weight: 29800 kg | Torque: 1064 Nm@1500 rpm |
| Breakout force: 188kN | Type: EFI,water cooled,Turbo charged |
| Traction force: 200kN | Emission: Tier3 Stage III |
| Dimension | Hydraulic system |
| Length: 9777mm | Hydraulic pump: Rexroth |
| Width: 2634mm（cabin included） | Load sensing vaiable pungerdouble pump |
| Height: 2390mm | Hydraulic valve: Rexroth, Parker, Mico |
| Ground clearance: 380mm | Hydraulic oil tank volume |
| Dump height: 1914mm | Work &Steer: 240L |
| Steering angle: ±42.5° | Brake tank: 57L |
| Inner turning radius: 3202mm | Fuel tank: 310L |
| Outer turning radius: 6514mm | Cooler: engine, transmission oil, hydraulic oil |
| Drivetrain | Cabin |
| Torque converter: DANA C5000 | FOPS/ROPS Certified |
| Transmission: DANA R36000 | Enclosed cabin with air conditione |
Axle: Kessler D102 | Door interlock protection |
Brake: Posi-Stop wheel brak | Double joystick control |
| Tire model: 18.00-25 | LED front and rear lights |
| Control system | Others |
| FET electronic technician | Manual cental lubrication system fire extinguisher |
| CAN-bus technology | Boom bolt /hinge bolt /reverse alarm |
5.7"color dispaly | Option |
| 3 modular design | Bucket capacity: 4.0~5.4m³ |
SKF central automatic lubnication system | |
| Trouble alarm | Ansul auto fire suppression system |
Self-diagnosis | Mercedes EFL diesel engine |
Data log download | Radio remote control device |

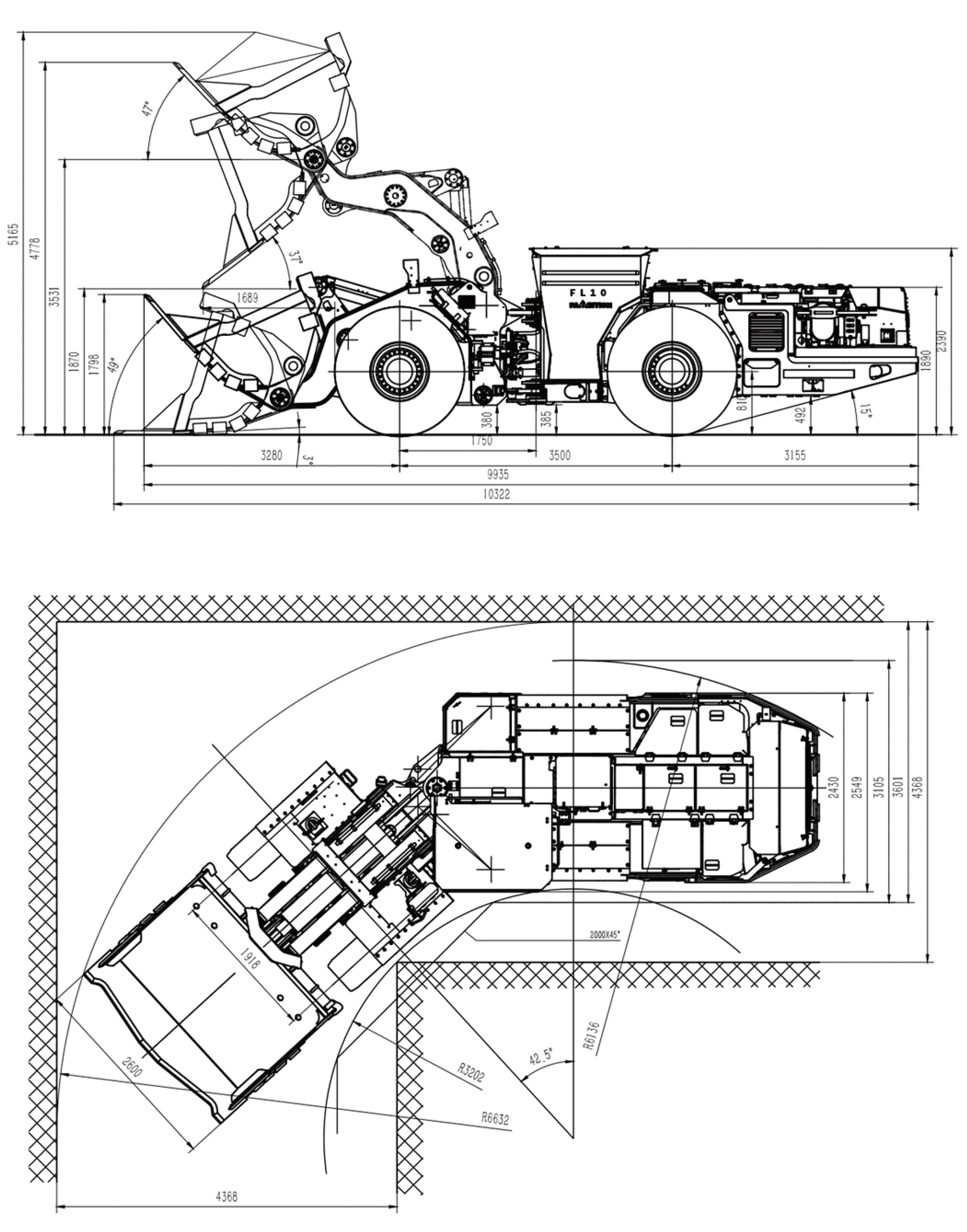

▍Device view
▍Steering view
