The FT45 underground diesel mining truck has a standard dump box of22m³and a payload capacity of 45 tons,primarily used for thetransporting hard rock in underground non-coal mines.

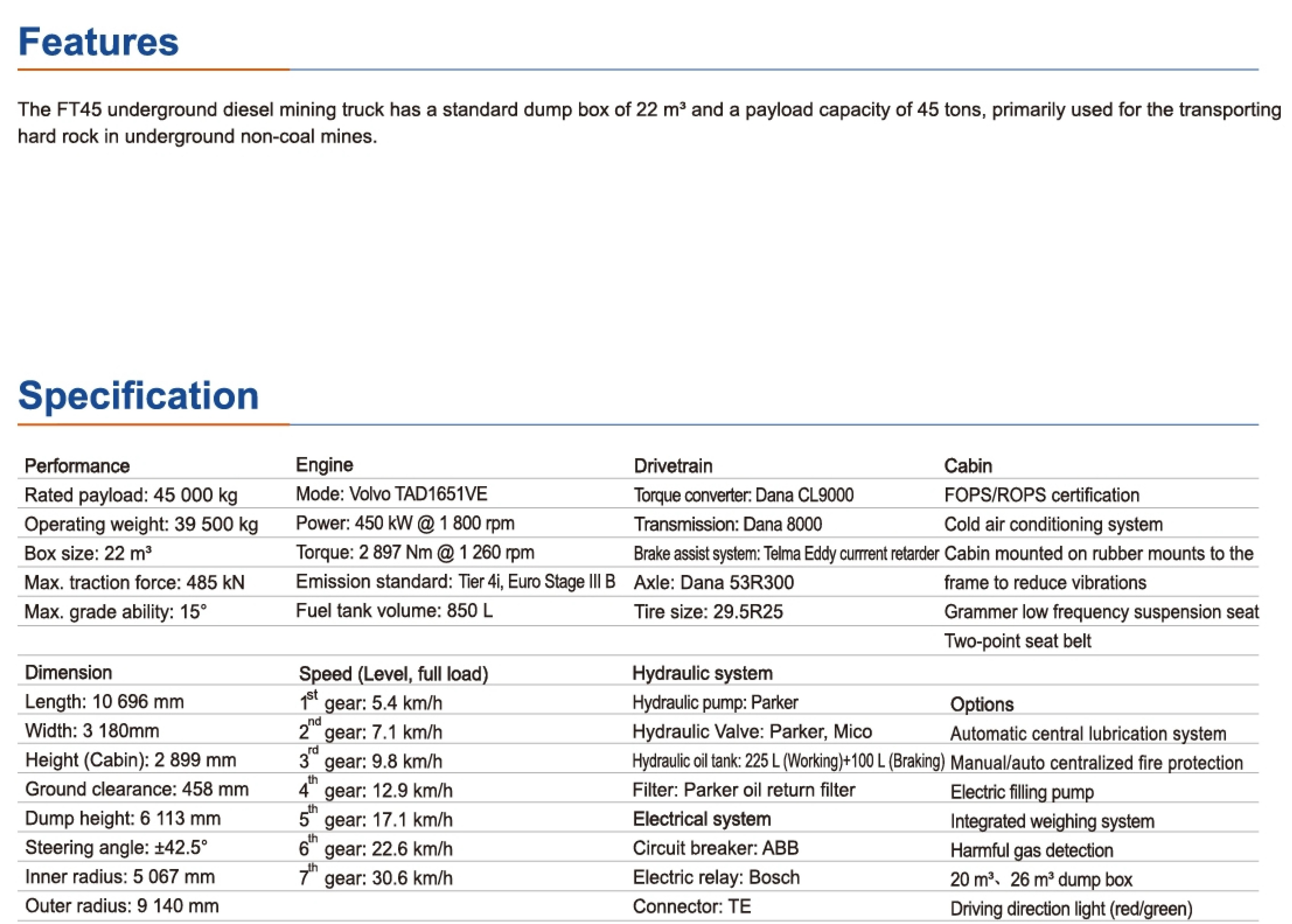

▍Specification
| Performance | Engine |
| Rated payload: 45000 kg | Model: Volvo TAD1651VE |
| Operating weight: 36100 kg | Power: 450kW@1800 rpm |
| Box size: 22m³ | Torque: 2913Nm@1200rpm |
| Max.grade ability: 15% | Emission standard: Tier 4i, Euro Stagel |
| | |
| Dimension | |
| Length: 10696 mm | Speed (full loading) |
| Width: 3180mm | 1st gear: 5.4 km/h |
| Height(Cabin): 2899 mm | 2nd gear: 7.1 km/h |
| Ground clearance: 458 mm | 3rd gear: 9.8km/h |
| Dump height: 5654 mm | 4th gear: 12.9 km/h |
| Dump Position Max.Height: 6113 mm | 5th gear: 17.1 km/h |
| Steering angle: ±44° | 6th gear: 22.6 km/h |
| Inner radius: 4543 mm | 7th gear: 30.6 km/h |
| Outer radius: 8503 mm | |
| Drivetrain | Safety |
| Torque converter: DANA C9000 | FOPS/ROPS Certification |
| Transmission: DANA 8000 | Cold Air Conditioning System |
| Axle: Dana 53R300 | Cabin Mounted on Rubber Mounts to the Frame to Reduce Vibrations |
| Tire size: 29.5R25 | Grammer Low Frequency Suspension Seat |
| Two-point Seat Belt | |
| Hydraulic system | |
| Hydraulic pump: Parker | Fuel system |
| Hydraulic Valve: Parker | Fuel tank volume: 630L |
| Hydraulic oil tank: 225L(Working)+100L(Braking) | Filterfineness: 10 μm |
| Filter: return oil filter | |
| Option | |
| Electric system | SKF auto lubrication system |
| Voltage: 24V | Ansul auto fire suppression system |
| Alternator: 28 V/150A | EU StageV |
| Light 48W, LED |

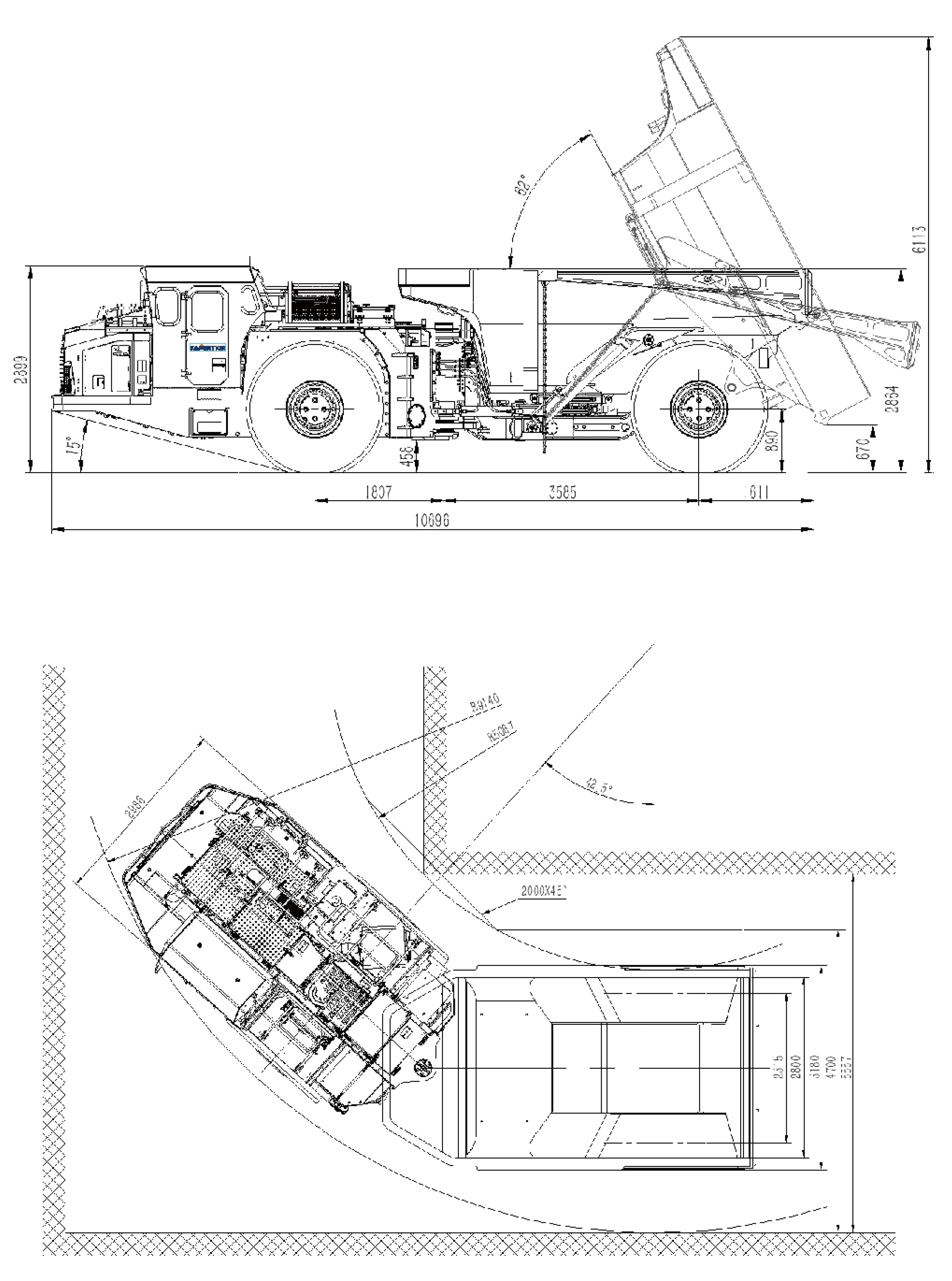

▍Device view
▍Steering view
