The payload of FT30 is 30 tons. FT30 equipped with a forward-drive cabin that fuly enclosed,shock-absorbing and air conditioning FT30 has good visibity and comfort.the whole vehicle control system adopts CAN-bus communication technology,Fambition Electronic Technician, electro-hydraulic proportional pilot control and variable hydraulic system. The control system is designed on the basis of CAN-bus. The on-board display screen can display the operating parameters of the scraper in realtime, and has the functions of fault warning and self diagnosis.The truck adopts Volvo water-cooled EFl engine to meet Eurol emission standards, and other parts adopt intemationally wellknown brands to meet the tough conditions and climbing requirements for underground. SKF auto lubrication system and Ansul auto fire suppression system are optional.

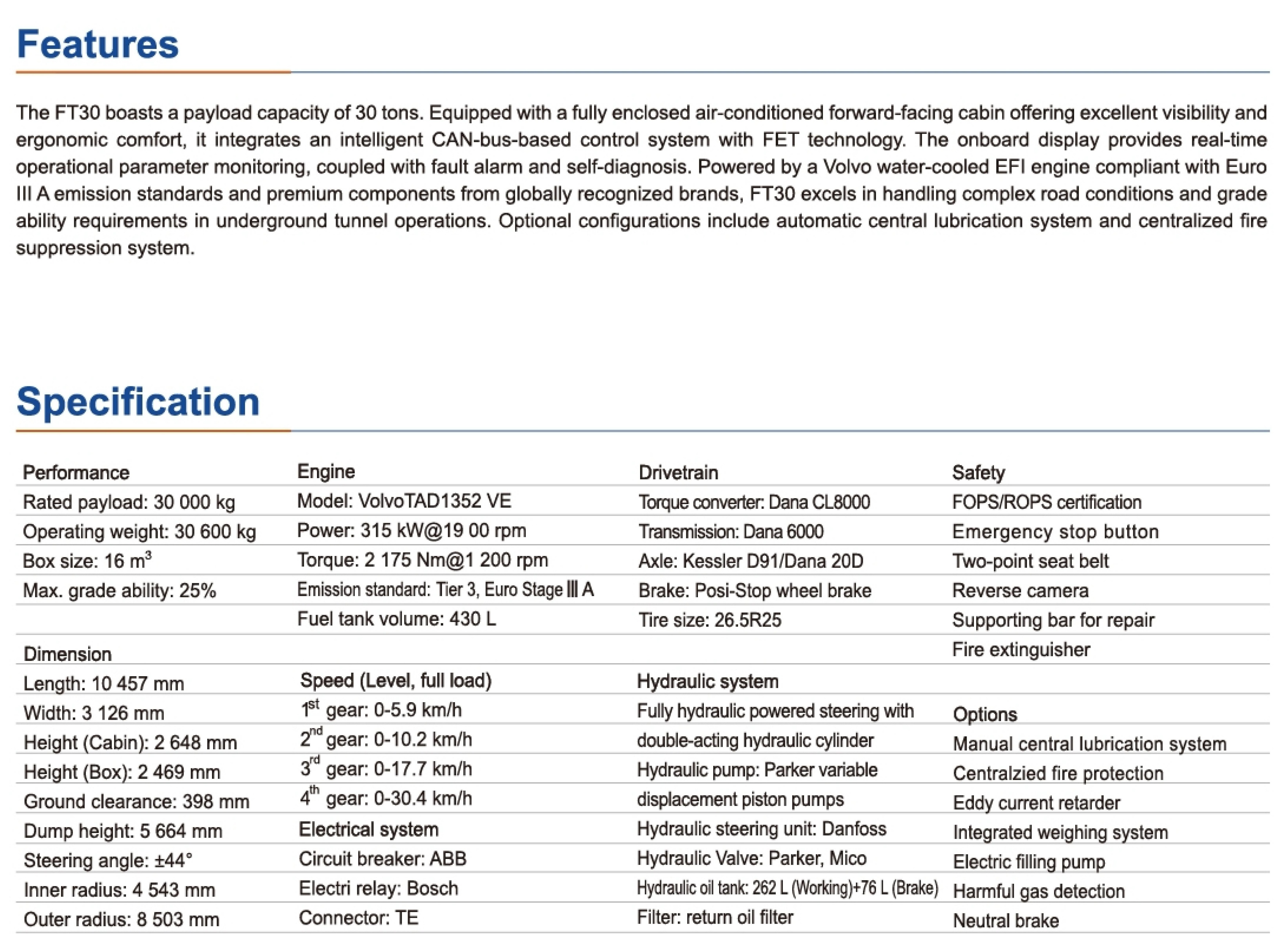

▍Specification
| Performance | Engine |
| Rated payload: 30000 kg | Model: volvoTAD1352 VE |
| Operating weight: 30600 kg | Power: 315 kW@1900 rpm |
| Box size: 16m³ | Torque: 2175 Nm@1200 rpm |
| Max.grade ability: 25% | Emission standard: Tier3,Stage l |
| Dimension | Speed (full loading) |
| Length: 10456 mm | 1st gear: 0-6.2 km/h |
| Width: 3126mm | 2nd gear: 0-10.2 km/h |
| Height(Cabin): 2674mm | 3rd gear: 0-17.7 km/h |
| Height (Box): 2458 mm | 4th gear: 0-30.4 km/h |
| Ground clearance: 398 mm | Turning radius |
| Dump height: 5654 mm | Steering angle: ±44° |
| Inner radius: 4543mm | |
| Outer radius: 8503 mm | |
| | |
| Drivetrain | Safety |
| Torque converter: DANA CL8000 series | FOPS/ROPS Cerified Safety Cabin |
| Transmission:DANA 6000 series | Emergency stop button |
| Axle:Kessler D91 series | Seat safety belt |
| Brake: Posi-Stop Wheel brake | Reverse alarm |
| Tire size: 26.5R25 | Box supporte |
| Fire Extinguisher | |
| Hydraulic system | |
| Hydraulic pump: Parker piston pump | Fuel system |
| Hydraulic Valve: Parker | Fuel tank volume:430L |
| Hydraulic oil tank 265 L(Working)+76L(Braking) | Filter fineness:4μm |
| Filter:return oil filter | Option |
| Electric system | SKF auto lubrication system |
| Voltage: 24V | Ansul auto fire suppression system |
| Alternator: 28 V/110A | Tier IV engine |
| Light: 48W, LED |

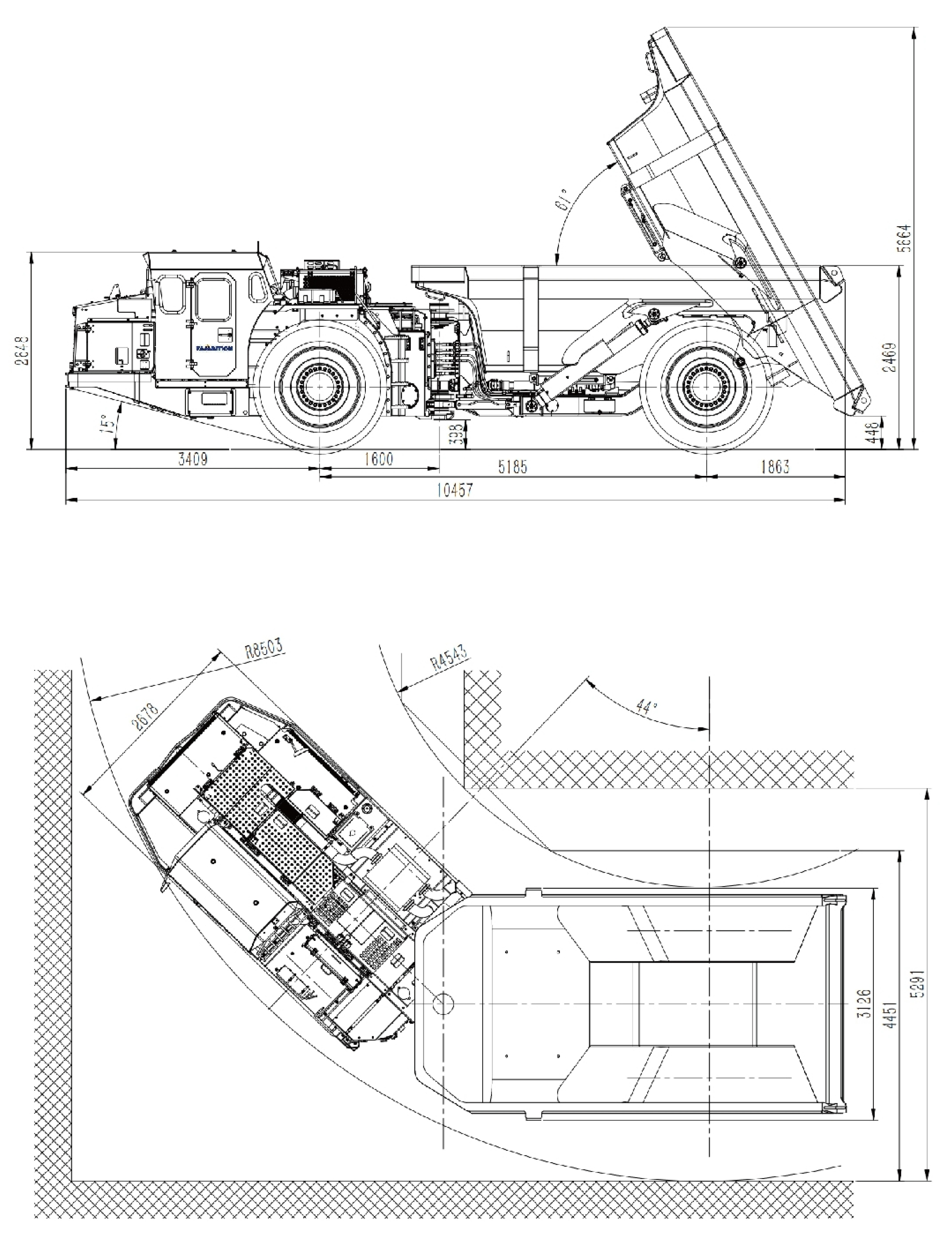

▍Side view
▍Steering view
