Rated payload 20 metric tons, FT20 is front facing operated mining truck with enclosed cabin, air-con, shock-absorption, good vision ability and comfort. Its control system consists of CAN-BUS technology, FET electrical technician, Real-Time Operation Display, Fault Alarm and Self Diagnosis. FT20 is equipped with a Cummins water cooled electric injection Engine, Eurol III standard. It applies brand components and is designed for tough underground road conditions. There're options of SKF automatic lubrication system and Ansul Fire Extinguishing System.

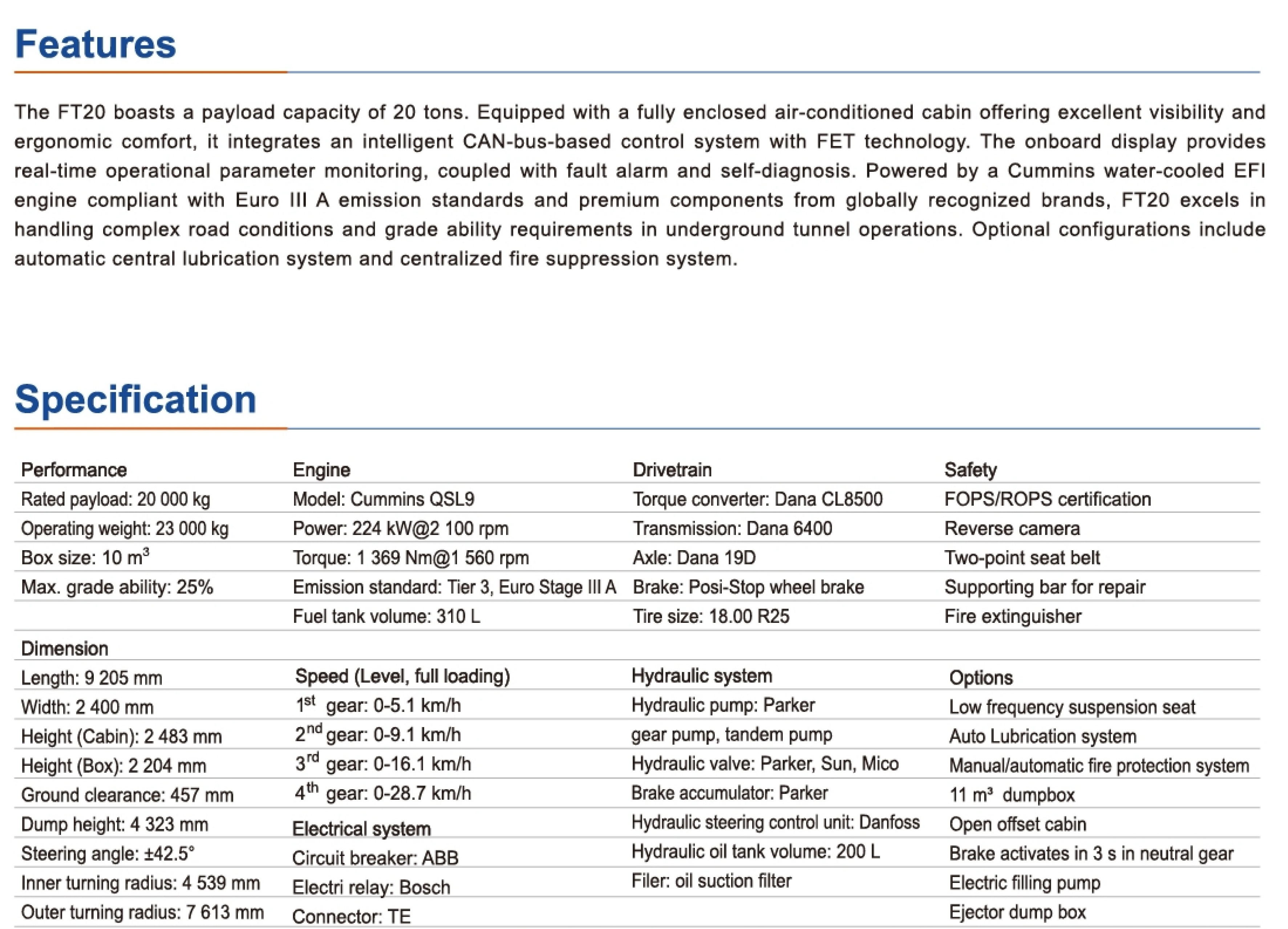

▍Specification
Performance | Engine |
| Rated payload: 20000 kg | Model: CUMMINS QSL9 |
| Operating weight: 23000 kg | Power: 224 kW@2100 rpm |
| Box size: 10m³ | Torque: 1369 Nm@1500 rpm |
| Max. grade ability: 25% | Emission standard: Tier 3 |
| Dimension | Speed (full loading) |
Length: 9205 mm | 1st gear: 0-4.5 km/h |
Width: 2400mm | 2nd gear: 0-8.0 km/h |
Height(Cabin): 2483mm | 3rd gear: 0-13.7 km/h |
Height (Box): 2204 mm | 4th gear: 0-23.9 km/h |
Ground clearance: 457 mm | Turming Radius |
| Dump height: 4361 mm | Steering angle: ±42.5° |
| Inner radius: 4539mm | |
Outer radius: 7613mm | |
| Drivetrain | Safety |
Torque converter: DANA CL8000 | FOPS/ROPS Cerified |
Transmission: DANA 6000 | Rear Camera |
Axle: DANA 19D | Seat safety belt |
Brake: Posi-Stop Wheel brake | Reverse alarm |
| Tire size: 18.00 R25 | Box supporter |
Fire extinguisher | |
Hydraulic system | Fuel system |
| Hydraulic pump: Parker gear pump | Fuel tank volume: 350L |
| Hydraulic Valve: Parker, SUN, Mico | Filter fineness: 3μm |
Hydraulic oil tank volume: 200L | |
| Filter: suction filter | Option |
| Electric system | SKF auto lubrication system |
Voltage: 24V | Ansul auto fire suppression system |
Alternator: 28 V/70A | 11³ Dumping box |
Work Light: 48W, LED | Open cabin |

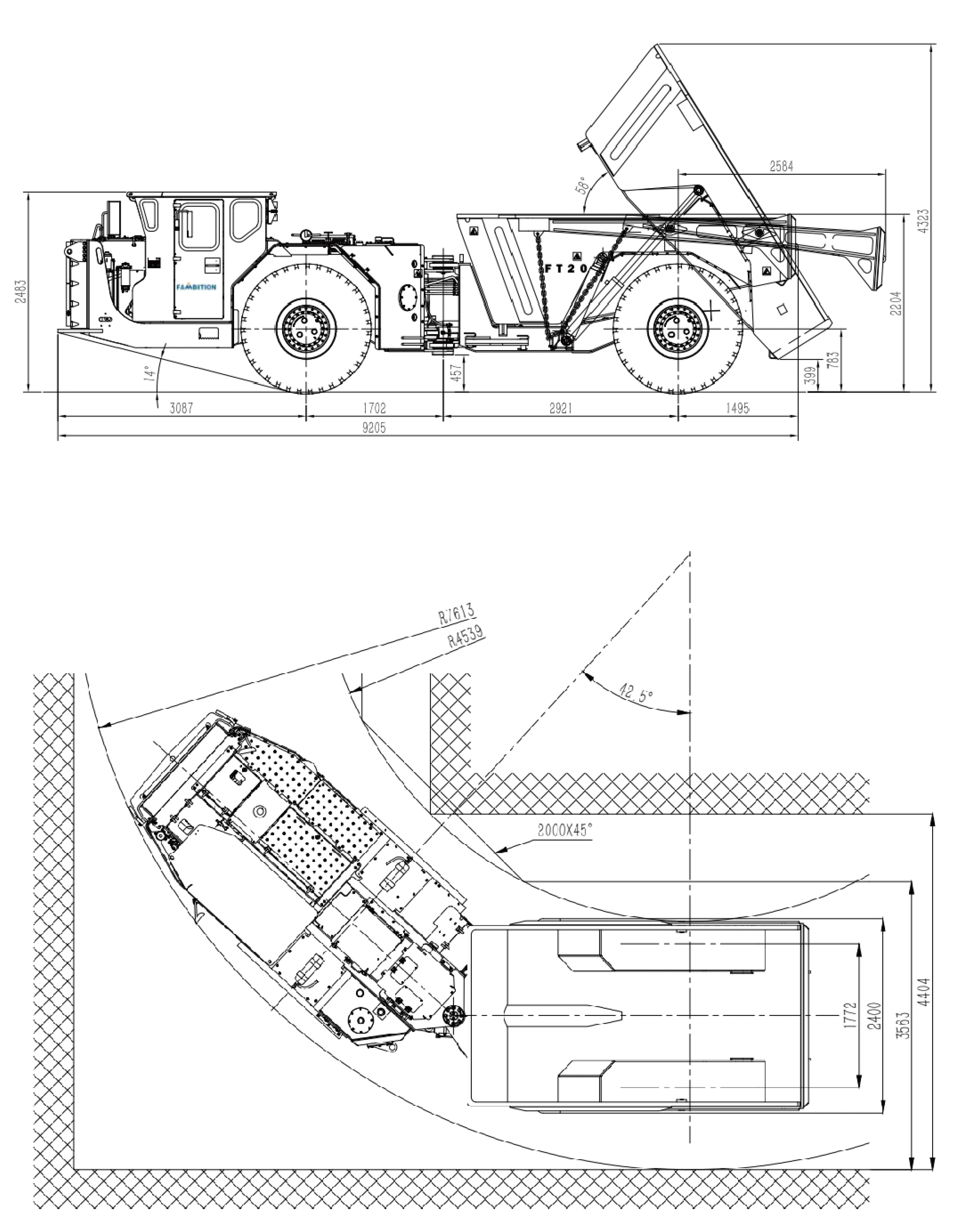

▍Side view
▍Steering view
