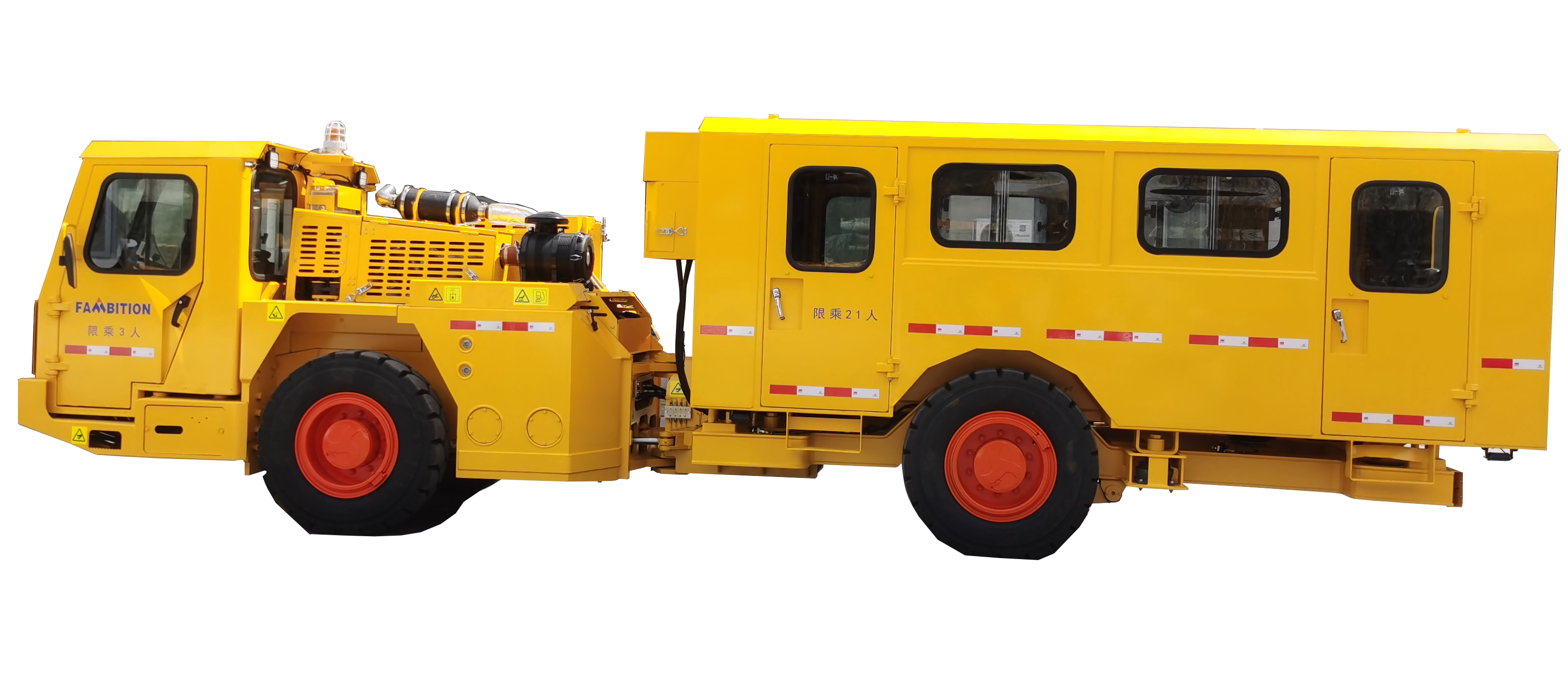

FUP24 is a personnel carrier for underground mine with capacity of 24 persons. It applies central articulation design, steering gear, small turning radius, and good for underground travel. Both cabin and carrier are ISO ROPS/FOPS certified for safety. The rear frame is equipped with oil and gas sping suspension, and the passenger cabin is equipped with rubber shock absorption to improve the comfort of the whole vehicle. The electrical control system is designed based on the CAN-bus,and the FET electronic technician and on-board display screen can display the operating parameters in real time, and have the functions of fault prompt alarm and self-diagnosis.
▍Specification
| Performance | Turning radius |
| Carriercapacity: 24 persons | Steering angle: ±40° |
| Rated payload:2400 Kg | Inner turning radius: 3930 mm |
| Operating weight:13000 kg | Outer turning radius: 6531 mm |
| Cabin &Carriage | |
| ISO ROPS/FOPS certified | Speed (level, full loaded) |
| 1st gear: 5.2 km/h | |
| Dimension | 2nd gear: 11.0 km/h |
| Length: 8568 mm | 3rd gear: 22.0 km/h |
| Width: 2040 m | |
| Height: 2462 mm | Hydraulic System |
| Ground clearance ≥313 mm | Steering pump: Danfoss |
| Charging valve/pedal valve: MICO | |
| Parking solenoid: Wagers | |
| Power System | Cabin(Enclosed) |
| Engine: Cummins QSB4.5, | FOPS/ROPS Certification |
| electric control, water cooled, 119 | Closed Air Conditioning and Heating Cabin |
| kW, Tier 3 | Three-point Contact Access System to |
| Exhaust System: Canada, | Quickly Get into the Cabin |
| Catalytic platinum purifier & silencer | Suspension Seat |
| Transmission: DANA T24000, | |
| Axle: DANA 123, mining rigid axle, | Brake System |
| oscillation±10°, fixed rear axle. | Service brake: Hydraulic brake, |
| Tire size: 10.00-20 | Hydraulic oil forced collong |
| Parking brake, Spring brake |
▍Device view
▍Steering view
FUP24 is a personnel carrier for underground mine with capacity of 24 persons. It applies central articulation design, steering gear, small turning radius, and good for underground travel. Both cabin and carrier are ISO ROPS/FOPS certified for safety. The rear frame is equipped with oil and gas sping suspension, and the passenger cabin is equipped with rubber shock absorption to improve the comfort of the whole vehicle. The electrical control system is designed based on the CAN-bus,and the FET electronic technician and on-board display screen can display the operating parameters in real time, and have the functions of fault prompt alarm and self-diagnosis.
▍Specification
| Performance | Turning radius |
| Carriercapacity: 24 persons | Steering angle: ±40° |
| Rated payload:2400 Kg | Inner turning radius: 3930 mm |
| Operating weight:13000 kg | Outer turning radius: 6531 mm |
| Cabin &Carriage | |
| ISO ROPS/FOPS certified | Speed (level, full loaded) |
| 1st gear: 5.2 km/h | |
| Dimension | 2nd gear: 11.0 km/h |
| Length: 8568 mm | 3rd gear: 22.0 km/h |
| Width: 2040 m | |
| Height: 2462 mm | Hydraulic System |
| Ground clearance ≥313 mm | Steering pump: Danfoss |
| Charging valve/pedal valve: MICO | |
| Parking solenoid: Wagers | |
| Power System | Cabin(Enclosed) |
| Engine: Cummins QSB4.5, | FOPS/ROPS Certification |
| electric control, water cooled, 119 | Closed Air Conditioning and Heating Cabin |
| kW, Tier 3 | Three-point Contact Access System to |
| Exhaust System: Canada, | Quickly Get into the Cabin |
| Catalytic platinum purifier & silencer | Suspension Seat |
| Transmission: DANA T24000, | |
| Axle: DANA 123, mining rigid axle, | Brake System |
| oscillation±10°, fixed rear axle. | Service brake: Hydraulic brake, |
| Tire size: 10.00-20 | Hydraulic oil forced collong |
| Parking brake, Spring brake |
▍Device view
▍Steering view
