Main highlights of FL10E

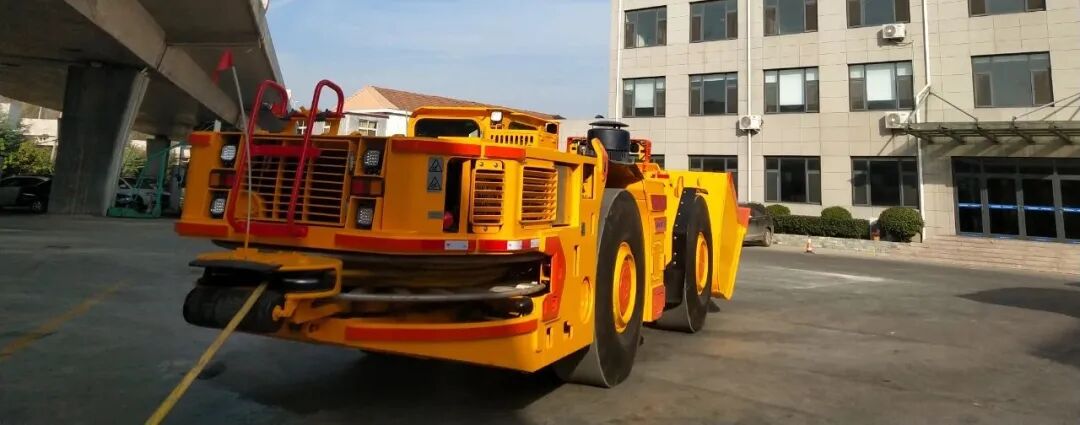

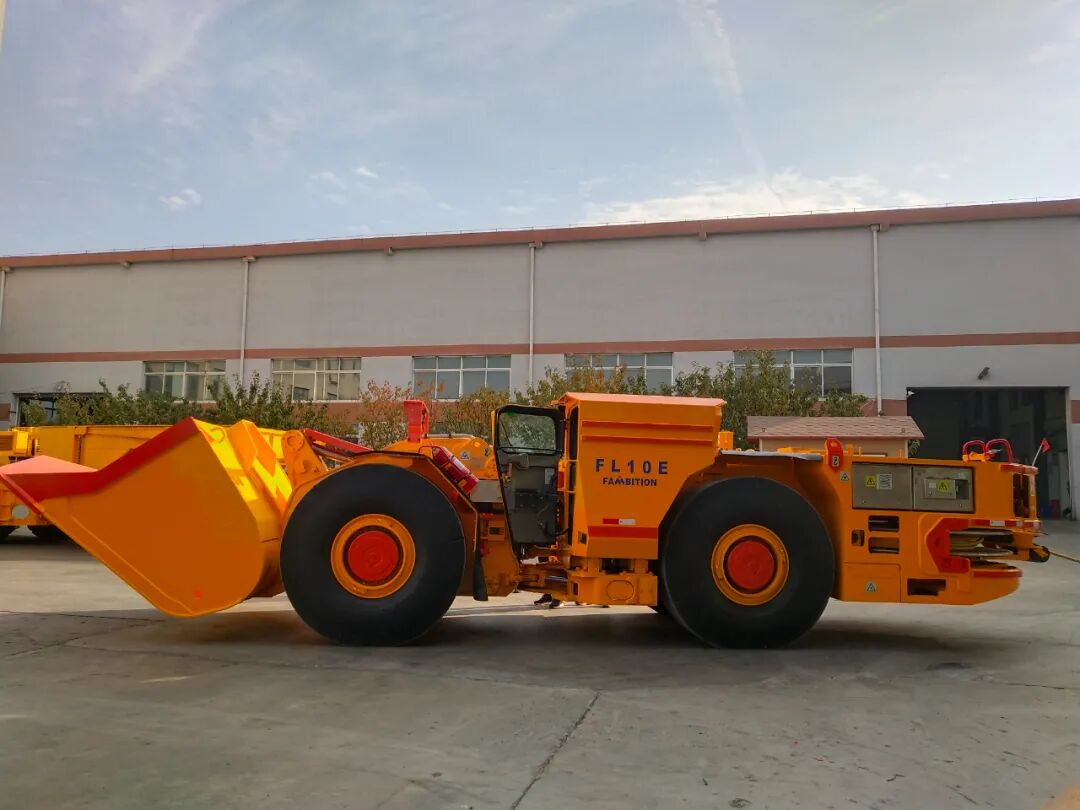

1. The FL10E is an underground electric scraper with a rated load of 10 tons. It provides an efficient underground zero-emission solution and solves the customer pain points of high noise and environmental pollution caused by diesel scrapers in underground operations.

2. Compared with diesel scrapers, it consumes less energy. According to calculations, it can save 20% of production costs.

1. FL10E is an electric scraper with advanced performance. Compared with other scrapers of the same level, the unique dual-motor (travel motor, hydraulic motor) design ensures that both motors operate under their rated loads. , reducing the heat generated by the motor, greatly improving the vehicle's power performance, shovel loading efficiency and motor service life.

2. The steering, working and cable-winding hydraulic systems all adopt variable systems, which effectively improves the stability and economy of the equipment.

3. The cable coiling system adopts variable pump control and load feedback, which can keep the tension of each turn of the cable in a constant state. Compared with the quantitative pump system, it can control the tension of each turn of the cable and always ensure that the cable is in a reasonable state. The tension state solves the previous problem of the cable being twisted and placed on the ground, resulting in frequent crushing.

4. Use horizontal coiled cables with better performance advantages, compared with vertical coiled cables:

Low center of gravity, smooth operation, better visibility, flexible operation and turning, no need to reverse when passing the wiring point, saving time and improving production efficiency. Vertical coiled cables are prone to uneven cable arrangement, which can easily lead to cable jamming or even breakage.

5. The vehicle control system adopts modular design and CAN-BUS bus communication technology, which greatly reduces equipment wiring and greatly reduces the problem of high failure rate due to poor line contact. The gearbox, work, steering, braking and winding Real-time display, monitoring, fault diagnosis and prompts of technical parameters of cable hydraulic system.

1. The main components such as power transmission system, hydraulic pressure, and electrical components are all from internationally renowned brands such as DANA, Kessler, parker, KPM, Rexroth, Mico, Goodyear, Bosch, and Schneider, with higher reliability.

2. Super strong structural parts design, with a service life of more than 10 years (20,000h). The big arm adopts a box-type boom, and the rocker arm side plate, tie rod plate, bucket support plate, and hinge plate are reinforced with design.

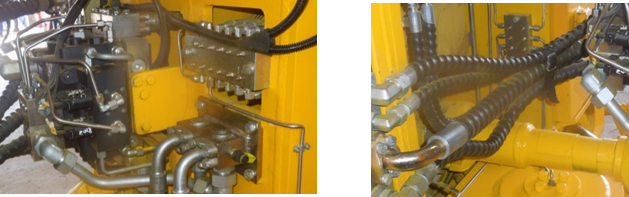

3. The FL10E uses hard steel pipes to connect all fixed parts of the hydraulic pipelines in the scraper. In the absence of external impact, the hydraulic steel pipes and the frame have the same lifespan, which greatly improves reliability and maintenance convenience.

1. It is equipped with a traveling motor that provides traveling traction and a hydraulic motor that provides working steering. The traction will not be affected while ensuring sufficient shoveling force.The strong shoveling force and traction force ensure full strength during the shoveling process, which can effectively avoid violations of operating procedures such as climbing ore piles and flushing piles. It can also handle large rocks under certain special circumstances.

2. FL10E uses a travel motor with a rated power of 110kW and a hydraulic motor with a rated power of 45kW. It is the only 4-cubic scraper of the same class that uses dual motors, with the largest total output power of 155kW.

3. The horizontal coiled cable structure can set a longer coiled cable length to meet a longer operating radius, reduce the number of movements of the ground cabinet, and improve operating economy.

1. The electrical system design complies with the safety requirements of JB/T5500 and GB25518. The main circuit is equipped with a residual current protection device and a continuity grounding and leakage monitoring device.

2. The working brake and parking brake are a set of brakes integrated at both ends of the bridge, using a closed wet braking method with spring brake hydraulic release.Spring brakes and hydraulic release brakes are safer and can ensure safe braking of the vehicle when the hydraulic system fails.

3. The cab is designed strictly in accordance with the performance requirements of GB/T17771 (eqv ISO3449) and has passed FOPS/ROPS certification.

2. Seats imported from well-known German brands are used, equipped with bucket floating and boom suspension functions to reduce cylinder and boom damage, and are more adaptable to bumpy and uneven underground road conditions, effectively improving equipment operating efficiency and driver comfort.

3. Compared with the vertical coiled cable, the horizontal coiled cable has a wider field of view, which is more conducive to the driver's cab to observe road condition information and makes driving safer.

4. The dashboard in the cab has a simplified operation design, simplifying the control panel, greatly reducing buttons and fault indicators, reducing the complexity of the driver's operation and making it easier to control the equipment.

5. Working, steering, and shifting are all performed electronically. The integrated design makes the operation more sensitive, labor-saving, and comfortable. At the same time, Zhonghong’s unique FET electronic technician technology is used to monitor the operating status of the equipment in real time and can be read directly. fault, greatly shortening equipment maintenance time.

1. It can be expanded to realize intelligent control such as production management, maintenance, and safety production, and can control weighing information, video surveillance, fault prediction, personnel positioning and other information through CAN bus control, fixed-point transmission or remote monitoring.

2. Reserve remote control and smart mine can-bus data interfaces, and open access to mines.Zhonghong remote control has practical application cases in domestic and international markets.

3. Upgrade the control module software according to usage requirements to meet user needs.
